How to Size an Industrial Centrifugal Fan for Airflow and Static Pressure
Correctly sizing an Industrial Centrifugal Fan is one of the most important steps in designing a reliable industrial ventilation, dust collection, drying, cooling, combustion or process-air system. An industrial centrifugal fan that is too small may fail to deliver the required airflow or static pressure. An oversized industrial centrifugal fan may consume unnecessary energy, operate inefficiently and create excessive noise or control problems.
The correct industrial centrifugal fan size depends primarily on two performance requirements: airflow and static pressure. Airflow determines how much air the fan must move, while static pressure represents the resistance that the fan must overcome throughout the connected system.
This guide explains how to size an industrial centrifugal fan for airflow and static pressure, how to estimate system resistance, how to use a fan performance curve and how to avoid common centrifugal fan sizing mistakes.
Industrial centrifugal fan sizing means selecting a centrifugal fan that can deliver the required airflow at the required static pressure under actual operating conditions.
Fan sizing is not simply choosing a fan by inlet diameter, outlet dimensions or motor power. Two centrifugal fans of similar physical size can have very different airflow and pressure capabilities.
Proper industrial centrifugal fan sizing considers:
Required airflow
Required static pressure
System resistance
Air temperature
Air density
Gas composition
Dust concentration
Fan speed
Impeller design
Motor power
Operating efficiency
The goal is to select an industrial centrifugal fan that operates close to its intended design range while providing sufficient performance margin.
Airflow and static pressure are directly related in an industrial air system.
An industrial centrifugal fan does not produce one fixed airflow regardless of resistance. As system resistance increases, the actual airflow delivered by the fan changes.
For example, a fan may provide high airflow when operating without connected ductwork. Once filters, ducts, bends and process equipment are added, pressure resistance increases and the actual airflow may decrease significantly.
This is why industrial centrifugal fan sizing should always specify both airflow and static pressure.
A useful fan requirement should therefore be expressed as:
Required airflow at required static pressure.
This operating point is far more meaningful than maximum airflow alone.
The first step in industrial centrifugal fan sizing is determining how much air the system must move.
Airflow is commonly expressed in:
Cubic meters per hour
Cubic meters per second
Cubic feet per minute
The correct airflow depends on the application.
For factory ventilation, required airflow may depend on room volume, heat load, contaminant concentration and desired air changes.
An industrial centrifugal fan used for ventilation must move enough air to remove heat, fumes, odors or airborne contaminants.
dust collection systems require sufficient airflow to capture particles at collection points and transport them through ductwork.
If airflow is too low, dust may escape at the source or settle inside ducts.
Industrial centrifugal fan sizing for dust collection should therefore consider both capture airflow and conveying velocity.
Industrial drying systems use airflow to transfer heat and remove moisture.
The required industrial centrifugal fan airflow depends on drying load, chamber dimensions, temperature and process speed.
Cooling systems require enough airflow to remove heat from equipment, products or process areas.
An undersized industrial centrifugal fan may lead to elevated operating temperatures and reduced production stability.
After airflow is established, the next step is calculating total system static pressure.
Static pressure represents resistance to airflow.
Every component in an industrial air system contributes pressure loss.
Common sources of static pressure loss include:
Straight ductwork
Duct elbows
Reducers
Transitions
Filters
Cyclones
Dust collectors
Scrubbers
Heat exchangers
Dampers
Silencers
Inlet hoods
Discharge outlets
Process equipment
The total static pressure requirement is the combined resistance of the complete airflow path.
An industrial centrifugal fan must generate enough pressure to overcome this resistance while still delivering the required airflow.
Ductwork is often one of the largest contributors to system resistance.
Pressure loss in ductwork depends on:
Duct length
Duct diameter or cross-sectional area
Air velocity
Surface roughness
Number of bends
Number of fittings
Long, narrow ducts generally create more resistance than short, large ducts.
Higher air velocity also increases pressure loss.
When sizing an industrial centrifugal fan, duct resistance should be calculated using the expected operating airflow rather than a random velocity assumption.

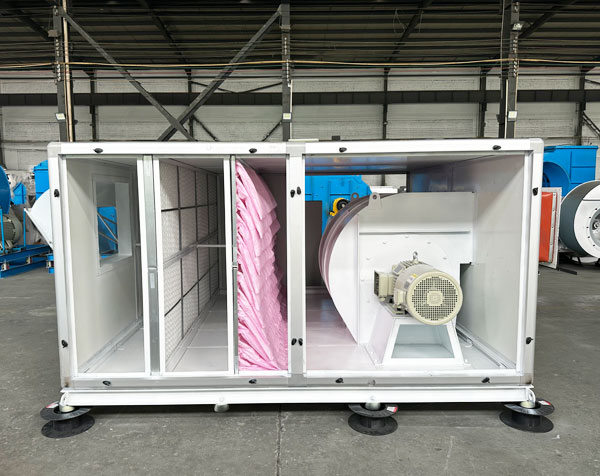

Filters can create significant static pressure resistance.
A clean filter may have relatively low resistance, while a dirty filter can create much higher pressure loss.
Industrial centrifugal fan sizing should therefore consider the expected operating resistance of the filter, not only the pressure loss when the filter is new.
If the industrial centrifugal fan is sized only for clean-filter resistance, airflow may decrease significantly as dust accumulates.
Cyclones, bag filters and other dust-control equipment create additional pressure resistance.
The equipment supplier should normally provide expected pressure-drop information at specified airflow.
This pressure loss should be included in the total static pressure calculation.
For dust collection applications, the industrial centrifugal fan must overcome the combined resistance of ducts, hoods, filters, cyclones and exhaust components.
Once airflow and static pressure have been calculated, the required operating point can be established.
For example, the system may require a specific airflow at a specific static pressure.
This operating point becomes the basis for selecting an industrial centrifugal fan.
The selected fan should provide the required airflow at the required pressure while operating within a stable and efficient portion of its performance range.
The fan performance curve is one of the most important tools for industrial centrifugal fan sizing.
A typical performance curve shows the relationship between airflow and pressure.
Additional information may include:
Fan efficiency
Motor power
Rotational speed
Recommended operating range
As airflow changes, the pressure produced by the industrial centrifugal fan also changes.
The required operating point should fall on or near the fan curve for the selected model and speed.
Industrial buyers should avoid selecting a centrifugal fan that operates at an extreme end of the performance curve unless the application specifically requires it.
The system curve represents how pressure resistance changes as airflow changes.
In many duct systems, pressure resistance rises rapidly as airflow increases.
The actual operating point occurs where the industrial centrifugal fan curve intersects the system curve.
This intersection determines the actual airflow and pressure produced after installation.
Understanding this relationship is important because the industrial centrifugal fan and the connected system operate together.
Air temperature affects density, and air density affects centrifugal fan performance.
Hot air is less dense than cool air.
If an industrial centrifugal fan handles high-temperature process gas, fan performance and motor power may differ from standard-air conditions.
Industrial centrifugal fan sizing should therefore include:
Normal operating temperature
Maximum operating temperature
Gas density
Altitude where relevant
These parameters are particularly important for furnaces, boilers, kilns, dryers and high-temperature exhaust systems.
Airflow and static pressure are not the only selection factors.
The material passing through the industrial centrifugal fan can affect impeller design, materials and maintenance requirements.
Important conditions include:
Dust concentration
Particle size
Particle abrasiveness
Moisture
Corrosive gas
Sticky material
Clean-air applications may use high-efficiency backward curved centrifugal fans.
Dusty or material-laden applications may require radial or heavy-duty impellers.
Industrial centrifugal fan sizing should therefore combine aerodynamic requirements with mechanical durability.
The impeller strongly influences industrial centrifugal fan airflow, pressure and efficiency.
A backward curved industrial centrifugal fan is commonly selected for clean or moderately dusty air where energy efficiency is important.
Typical applications include:
Industrial ventilation
Air filtration
Drying systems
Cooling
Process air handling
A radial industrial centrifugal fan may be more suitable for dusty or particle-laden airflow.
The stronger and more open blade design can provide better resistance to material buildup and abrasion.
Forward curved centrifugal fans can provide high airflow at relatively low rotational speed.
They are generally more suitable for cleaner air and lower-to-medium pressure conditions.
After the industrial centrifugal fan operating point is selected, motor power must be checked.
Motor sizing depends on:
Airflow
Static pressure
Fan efficiency
Fan speed
Operating margin
The motor should provide enough power across the expected operating range without being excessively oversized.
An undersized motor may overload and trip during operation.
An excessively oversized motor can increase purchase cost and may operate inefficiently.
Correct industrial centrifugal fan sizing therefore includes both aerodynamic and electrical requirements.
A variable frequency drive can adjust industrial centrifugal fan speed according to actual process demand.
Variable-speed operation can be useful when airflow or pressure requirements change during production.
Potential benefits include:
Improved airflow control
Better pressure control
Reduced unnecessary energy consumption
Lower startup stress
Greater operating flexibility
However, the industrial centrifugal fan should still be correctly sized. A VFD cannot compensate for a fan that is fundamentally too small or mechanically unsuitable.
Industrial centrifugal fan sizing often includes some performance margin to account for uncertainty or future changes.
However, adding excessive margin can result in oversizing.
Potential reasons for moderate margin include:
Filter loading
Minor duct changes
Process variation
Measurement uncertainty
The correct margin depends on the application.
A well-designed industrial centrifugal fan system should avoid both insufficient capacity and unnecessary oversizing.
Fan diameter alone does not determine airflow and static pressure.
Impeller design, speed and housing geometry also influence industrial centrifugal fan performance.
Maximum airflow values may be measured at very low pressure.
The actual requirement should be based on airflow at the required static pressure.
Filters become more resistant as they collect material.
An industrial centrifugal fan should be sized for realistic operating resistance.
Bends, reducers and transitions can create significant pressure loss.
Ignoring these components can result in underestimating total static pressure.
Adding too much safety margin can create an oversized industrial centrifugal fan.
This may increase:
Energy consumption
Noise
Equipment cost
Control difficulty
Dust collection requires careful industrial centrifugal fan sizing because airflow must remain high enough to capture and transport particles.
The design process should consider:
Number of collection points
Required capture velocity
Duct conveying velocity
Filter pressure loss
Cyclone resistance
Duct length
Dust characteristics
An industrial centrifugal fan that provides insufficient airflow can reduce dust capture performance and increase material accumulation inside ducts.
Boilers may use industrial centrifugal fans for forced draft, induced draft or combustion-air applications.
Fan sizing should consider:
Required combustion airflow
Furnace resistance
Heat exchanger resistance
Flue gas temperature
Dust concentration
Stack resistance
Because boiler operating conditions may change with load, the industrial centrifugal fan should provide stable performance across the expected operating range.
Drying applications require airflow for heat transfer and moisture removal.
Industrial centrifugal fan sizing should consider:
Drying chamber volume
Air recirculation rate
Heater resistance
Product loading
Operating temperature
Moisture removal requirement
The fan should provide sufficient airflow without creating excessive energy consumption.
Factory ventilation sizing may depend on air changes, contaminant extraction and heat removal.
The industrial centrifugal fan must overcome duct resistance while maintaining required room or local exhaust airflow.
For complex ventilation networks, different branches should be considered during pressure-loss calculations.
Once the required operating point has been defined, buyers can compare suitable fan models.
| Selection Factor | What to Check |
|---|---|
| Airflow | Required volume at actual operating pressure |
| Static Pressure | Total system resistance |
| Efficiency | Efficiency near required operating point |
| Motor Power | Sufficient power without unnecessary oversizing |
| Impeller Type | Suitable for clean air, dust or particles |
| Material | Suitable for temperature, corrosion and abrasion |
| Speed Control | Compatibility with variable-frequency operation |
The best industrial centrifugal fan is not necessarily the fan with the highest airflow or largest motor. It is the fan that matches the required operating point most effectively.
Accurate information improves industrial centrifugal fan sizing.
Before selecting a fan, prepare:
Required airflow
Required static pressure
Duct dimensions
Duct length
Number of bends
Filter pressure loss
Process equipment resistance
Operating temperature
Gas composition
Dust concentration
Motor voltage
Motor frequency
Operating hours
Variable-speed requirements
Complete data allows the industrial centrifugal fan to be matched more accurately with the actual system.
Fan sizing should be verified during commissioning.
Important measurements include:
Actual airflow
Static pressure
Fan speed
Motor current
Vibration
These values should be compared with design conditions and the industrial centrifugal fan performance curve.
If airflow is lower than expected, possible causes include:
Higher system resistance
Blocked filters
Incorrect fan rotation
Low fan speed
Duct restrictions
Air leakage
Energy efficiency is closely connected to industrial centrifugal fan sizing.
An oversized fan may require dampers or other control methods to reduce excessive airflow. This wastes pressure and electricity.
A correctly sized industrial centrifugal fan can operate closer to its efficient design range.
When combined with appropriate speed control, correct fan sizing can reduce long-term energy consumption while maintaining stable process performance.
Correctly sizing an industrial centrifugal fan requires a clear understanding of both airflow and static pressure. Airflow defines how much air the system must move, while static pressure represents the resistance created by ducts, filters, cyclones, bends, dampers and process equipment.
The first step in industrial centrifugal fan sizing is determining the required airflow. The next step is calculating total system resistance and establishing the required operating point.
The selected industrial centrifugal fan should then be checked against its performance curve to confirm that it can deliver the required airflow at the required static pressure within a stable and efficient operating range.
Temperature, air density, dust characteristics, impeller type, motor power and variable-speed requirements should also be considered before final fan selection.
Common mistakes such as selecting by fan diameter, maximum airflow or motor power alone can lead to poor system performance and unnecessary operating cost.
By using accurate airflow calculations, realistic static pressure estimates and complete process data, industrial users can select an industrial centrifugal fan that delivers reliable performance, efficient energy use and stable long-term operation.
이 웹사이트는 귀하가 당사 웹사이트에서 최상의 경험을 할 수 있도록 쿠키를 사용합니다.
EN
Español
Portugues
Pусский
Français
Deutsch
日本語
العربية
ไทย
हिन्दी
Tiếng Việt
논평
（0）
